Harley Code P0562: Mean, Causes, Symptoms, and Solution

One of the issues Harley Davidson bikes faces is encountering the code P0562. Diagnosing and troubleshooting are crucial as soon as your Harley encounters the code.

So, what does the Harley code p0562 stand for? It is a diagnostic code that indicates a low voltage situation in the ECM (engine control module). The causes behind the code include-

• A faulty or broken alternator and voltage regulator
• Corroded battery connections, blown out fuse, or low battery voltage, etc.

In this guide, we’ll learn about the causes and symptoms of the problems in detail. We will also learn the solutions to the code P0562 here. Other essential info will also be provided. Keep reading to learn more.

What is Harley Code P0562?

Before diving into the discussion we should know what exactly Harley code P0562 is.

Harley code P0562 is a diagnostic trouble code (DTC), or access code that indicates a low voltage situation in the ECM (Engine Control Module). The ECM is responsible for managing various engine functions, including fuel injection, ignition timing, and emissions control.

When the voltage in the ECM falls below a certain threshold, the P0562 code is triggered, and the engine’s performance is affected.

Harley Code P0562 : Causes, Symptoms and Solutions

First, let’s have a quick look at the causes, and quick solutions to the Harley code P0562.

Causes	Solutions
Low battery voltage	Check battery voltage and charging system
Faulty alternator	Check alternator output voltage
Corroded battery connections	Check battery connections and clean if necessary
Blown fuse	Check all fuses and replace if necessary.
Faulty voltage regulator	Test voltage regulator output

Remember that the following are some frequently known causes. There may be further challenges that you run through. Take the necessary steps if any other issues are found.

Harley Code P0562: Causes, Symptoms, and Potential Solutions in Detail

We have a quick overview of the causes of Harley Code P0562. Let’s break down the causes, with symptoms and their possible solutions onward.

Cause 1 : Low Battery Voltage

One of the causes of the Code P0562 is low battery voltage. Low battery voltage can cause some serious problems in your two-wheeled friend, from slow cranking or no start to electrical issues and erratic behavior.

Symptoms of Low Battery Voltage

• Slow cranking or no start
• Dim headlights or other lights
• Electrical issues, such as loss of power to accessories or erratic behavior
• Check engine light or other warning lights on the dashboard
• Battery light on the dashboard

Potential Solution

To address low battery voltage, it is important to check the battery itself. Test the battery with a multimeter to see if it has a proper charge. If the battery is old, replace it. Or if the battery has a low charge, recharge it and check if the battery can hold the charge.

Cause 2 : Faulty Alternator

The alternator is an essential component of your Harley Davidson’s charging system. It charges the battery and powers the electrical system while the engine is running.

A faulty alternator is not something you should avoid, as it can cause major damages later. So it’s important to be aware of the symptoms and solutions. In the end, a faulty alternator can throw the code P0562.

Symptoms of a Faulty Alternator

• Dim headlights: dim headlights are a pretty common symptom. The alternator provides power to the headlights, and if it’s failing, they may appear dim or flicker.
• Warning lights: The warning lights on your dashboard, such as the battery light or check engine light, can indicate a problem with the alternator. These lights may turn on if the alternator isn’t providing enough power to the electrical system.
• Dead battery: If your battery is frequently dead or needs to be jumped, it could be a sign that the alternator isn’t charging the battery properly.
• Strange noises: A failing alternator may produce strange noises, such as whining or grinding sounds.

Potential Solution:

If the alternator is confirmed to be faulty, it will need to be replaced. This is a relatively simple repair, but it’s important to choose a high-quality alternator to ensure reliable performance.

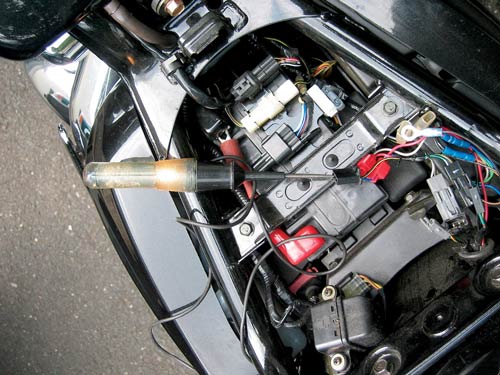

Cause 3 : Corroded battery connections

Another reason you may encounter the code P0562 is the corroded battery connections. And, one of the most seen electrical issues that can occur is bad battery cables or terminals. This can cause erratic behavior in the motorcycle electrical system and lead to a range of issues.

Additionally, Harley code p1511 can also indicate battery issues.

Corroded Battery Connections Symptoms

When battery cables or terminals go bad, you may see a bunch of symptoms.  These may include:

• The electrical system of your motorcycle may act erratically, with lights flickering or turning on and off without explanation.
• The engine may struggle to start or may not start at all due to insufficient power.
• It may experience a loss of power while driving, leading to poor performance or even stalling.
• Corrosion on the battery cables or terminals may cause them to become brittle or break, which can lead to electrical issues.

Potential Solution

Here are some steps you can take in such a situation

• Step 1: Examine the battery wires for damage or corrosion. Examine the cable for cracks or fractures, as well as any spots where the cable may be frayed or exposed.
• Step 2: Inspect the battery terminals for any signs of corrosion or damage. You may look for a build-up of white or green powder around the terminals.
• Step 3: If you notice any corrosion on the cables or terminals, use a wire brush to clean them. You can also use a solution of baking soda and water to neutralize any acid buildup.
• Step 4: Finally, if the cables or terminals are damaged beyond repair, it is important to replace them.

By following these steps, you can help prevent electrical issues in your two-wheeled friend and ensure that it runs smoothly and reliably.

Cause 4 : Faulty Voltage Regulator

A faulty voltage regulator can cause various problems in the electrical system, such as a battery not charging properly or overcharging. When your Harley experiences a faulty voltage regulator, the code P0562 will be thrown by the ECM. Harley code p0132 is also associated with the same kinda problems.

Symptoms of a faulty voltage Regulator:

The symptoms of a faulty voltage regulator may include a warning light on the dashboard, a battery that is not charging, or a battery that is overcharging.

Potential Solution:

You may go through the following steps in this case :

• Step 1: Test voltage regulator output To diagnose a faulty voltage regulator, you should test the voltage regulator output with a multimeter.
  • Check the voltage reading on the multimeter, which should be between 13 and 15 volts.
• If the voltage reading is too low or too high, it may indicate a faulty voltage regulator.
• Step 2: Replace the voltage regulator If it is faulty. Follow the manufacturer’s instructions and use the correct tools and techniques.
• Step 3: Test the voltage output again Once the new regulator is installed. Test the voltage output again to ensure that it is within the recommended range (between 13 and 15 volts).

Cause 5 : Blown Fuse

A blown fuse is an issue that can cause a loss of power to various electrical systems in a motorcycle. When a fuse blows, it breaks the electrical connection to the affected circuit. It can cause the components that rely on that circuit to stop functioning.

For example, if the fuse that protects the ignition system blows, the engine will not start or run.

Symptoms of Damaged Fuses

• Complete loss of power to a specific system (e.g. headlights, power windows, radio)
• Flickering lights
• Intermittent power loss
• Electrical components not functioning properly

Potential Solution:

• Step 1: Locate the fuse box in the harley. It is often located on top of the box.
• Step 2: Check all fuses in the bike for signs of damage.
• Step 3: Replace any blown fuses with a new fuse.

If you replace the fuse and it blows again, it may be a sign of a larger underlying issue such as a short circuit or faulty electrical component. In this case, further diagnosis and repair may be necessary.

However, to know more about problems , a Harley Davidson user manual , or guidebook can be viewed.

FAQs

Don’t go away. You have more to learn.

Conclusion

The Harley code P0562 indicates a low voltage situation in the engine control module (ECM). The P0562 code can be caused by several factors including low battery voltage, a faulty alternator, corroded battery connections, and a faulty voltage regulator.

Symptoms include dim headlights or other warning lights on the dashboard. Also, slow cranking or no start, loss of power, and electrical issues can also be seen as a sign.

The solutions are mostly on checking the battery voltage and replacing the alternator. Additionally, cleaning corroded battery connections, and testing the voltage regulator output can be beneficial.

However, it is important to note that if additional difficulties arise, contacting a technician is always recommended.
